ABM Metal Detectors Pty Ltd, Australia

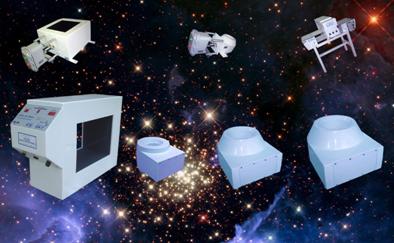

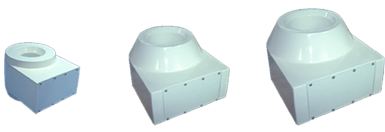

<body> For many years ABM Metal Detectors has been designing various types and sizes of metal detecting systems for applications ranging from the Food Manufacturing up to systems that require special DIP requirements used in the Defence Industries or other hazardous areas. Our metal detector aperture sores can range from a small I 00mm wide x 70mm high, up to a massive 2400mm wide x 1200mm high for the special application with excellent sensitivity & Product Compensation control. <br> All models are high performance metal detectors suitable for detecting ferrous and non-ferrous metallic contamination in a wide range of non-metallic products. These units consist of a detector head, an electronic module with power supply and relay output with full reject timing controls A selected range of Series 4B detectors can as an option be constructed with removable End Plate design or remote mounted electronic controls up to 10 metres away without any operating problems. <br> Also available is a range of Vertical fall or Drop Through metal detectors which can also be used for pipeline applications. The V F range of detectors have an extremely low metal free zone of approximately 40mm each side of the detector head and also as a standard, have remote mounted controls up to 10 metres away for ease of operation. These Drop Through metal detectors are commonly used on Form Fill & Seal machines mounted just above the forming tube or other applications for gravity fed. free flowing powders, pipeline, liquid or granular materials. Each model in the range operates with analog mum controls with digital pulse phase modulation and phase discriminating signal demodulation network coupled to a Dual Gated Detection System. The Dual Gated detection system is a feature that eliminates early topping when metal contaminants are being conveyed through the detector head Detection actually occurs when the metal contaminants just pass through the centre of the detector head. This system allows excellent product compensation and sensitivity, also minimises the amount of good product reject <TABLE cellspacing=5 width="120"> <TR> <TD width=10 rowspan=15></TD> <TR> <TD><A href=profile.html target="page"><FONT face=arial,helvetica size=1>Profile</FONT></A></TD> </TR> <TR> <TD><A href=abmetal1.html target="page"><font face="arial,helvetica" size="1">Dropt Through & Pipeline Metal Detectors</font></A></TD> </TR> <TR> <TD><A href=abmetal2.html target="page"><font face="arial,helvetica" size="1">Open End Aperture Detector & Customed Design Conveyorsr</font></A></TD> </TR> <TR> <TD><A href=abmetal3.html target="page"><font face="arial,helvetica" size="1"> Series 4B Metal Detectors</font></A></TD> </TR> <TR> <TD><font face="Arial" size="2"><b><font color="#000080"><a href="mailto:abmetal@alphalink.com.au"><font size="1">Email Us</font></a></font></b> </font></TD> </TR> </table> Standard Series 4B with Removable End Plate System Mainly used in applications for Meat, Plastics & Paper recycling, Timber and other applications where the detector can be fitted or removed without cutting the Belt. Sizes Ranging from 400mm x 100mm high up to 1400mm wide x 800 high. Mild Steel or Stainless Steel head construction. Custom Built Conveyor Systems. Metal Detector Conveyor Systems can be designed to meet customers requirements They can be constructed with standard 3 phase Drum Motor Drive system or single phase input to converter with 3 phase speed control output. Series 4B-QDF models Mainly Mainly used in food processing or other applications requiring high sensitivities. Standard Head mounted controls or optional cable remote mounting up to 10 metres away as shown. Complete wrap around coil system with Aperture sizes ranging from 100mm wide x 70mm high up to 1300mm wide x 350mm high. Unit shown is a specially modified QDF unit for the explosives industries. Light weight aluminium head construction coated m Epoxy white. Standard Series 4B Mainly used for products such as Hay bales, Plastic K Paper or Glass recycling, Coal or other mining materials, Timber, Bagged products etc. Sizes range from 400mm wide x 100mm high up to 2400mm wide x 1200mm high. Unit shown is a 900mm wide x 600mm high with a Detection Sensitivity of 4.5mm mild steel. These units can be constructed with optional remote mounted controls up to 10 metres away from detector head Mild Steel or Stainless Head construction. Series 4B Construction of a Series 4B Metal Detector unit to be used in Coal mining for the detection of Brass and Copper explosive Detonation devices. SPECIFICATIONS FOR VF units Detector Head weight: I 00mm unit ........ 13kg 150mm unit ........ 19kg 200mm unit ........ 26kg Detection Sensitivity at Phase Out: 100mm unit ........ 0.6mm mild steel & 1.2mm Stainless steel 150mm unit ........ 1.0mm mild steel & 1.6mm Stainless Steel 200mm unit ........ 1.2mm mild steel & 1.8mm Stainless Steel Metal Free Zones: 100mm & 150mm units ........ 40mm each side for moving metal 200mm unit ........ 70mm each side for moving metal <br> Cable remote mounted control: Standard 4 metres & maximum 10 metres Optional Plastic coned chute for VF-I50 & VF-200 units only. Aluminium head construction, Coating is of Food grade Epoxy white <br><center>Your browser does not support frames. This site is best viewed with a frame supported browser.</center> </body>
