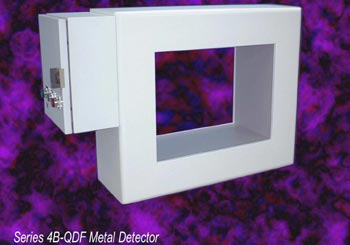

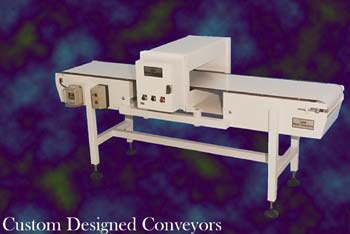

Series 4B-QDF Metal Detector

The QDF is a high performance Metal Detector suitable for detecting ferrous and Nor-ferrous metallic contamination in a wide rang of food or other products. The QDF consists of an Aluminum constructed detecting head with full surround triple coil system filled with a Non-shrink Urethane resin for complete sealing. The system operates using analogue main controls with digital plus phase modulation and phase discriminating signal demodulation network coupled to a dual gated signal detection system for maximum performance.

The system is designed with full automatic temperature control with AFT & AGC/AFC circuits for maximum performance on conductive products. Full reject timer facilities are also provided with the system including output relay for controlling external equipment.
The unit can also be constructed with remote mounted controls up to 15 meters away from the detector head without any operating problems.

• Automatic Fine Tuning & AGC/AFC Circuits
• Dual Gated Detecting System network
  Eliminating early tripping from approaching conveyed product with metal contamination for
  accurate rejection time
• Self-tracking Product Compensation Circuitry
  Eliminating the need for auto-balance. Accuracy 001% per deg. C
• 3 Stage Signal Demodulation Filtering System
  Reduces false tripping from transient discharges tested inline 240v - 12kv .025mA Arc for
  100ms at 1MTR
• Factory Selected, up to 24 frequency channels for multiple detector use
• Up to 38 Detections can be stored within a 10 second period for reject travel time
• All electronics on one module for easy service or replacement
• Operational after 10 seconds
• Designed to meet IP65 specification
• Operates with hot or cold products
• Detects all ferrous and non-ferrous metals
• Operates at high or low belt speeds
• Selectable Output Functions: relay dry contacts 240V 2Amps
• Electrical Power Supply Range: 180V to 270V AC 50/60 Hz 40VA
• Operating Temperature: -2 to +40 Deg C Humidity 95%
• Compete with Installation and Operating Manuals
• Designed and Manufactured by ABM. Metal Detectors P/L Australia

Standard Series 4B with Removable End Plate System

Mainly used in applications for meat, plastics and paper recycling, timber and other applications where the detector can be fitted or removed without cutting the belt. Sizes ranging from 400mm wide x 100mm high up to 1400mm wide x 800 high. Mild steel or stainless steel head construction.
